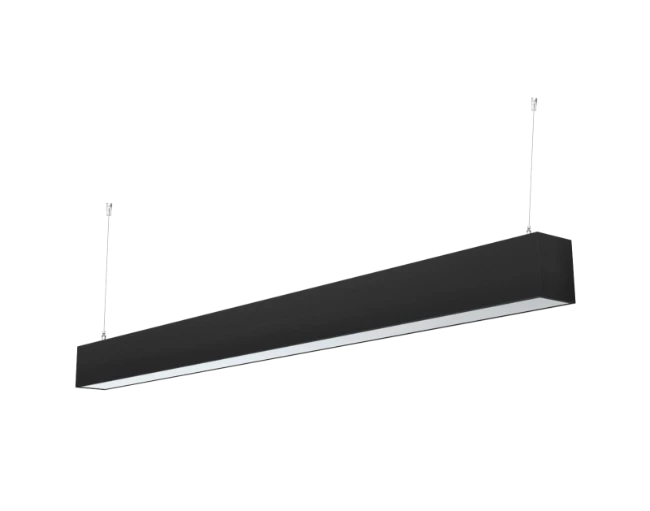

Lima G2

LEDLima-P2 L12-20W-DALI-830/840-D-U19-BL

Product Code
529000319100
  • Elegant linear luminaire with premium aluminium housing — available in Aluminium or Black finish
  • Connection kit accessory to create continuous lines available
  • Modular connection options with L-, T-, X- and I-connectors — ideal for continuous lines or custom layout designs
  • UGR < 19 in all versions for comfortable visual comfort
  • Suspension kit including transparent cable available as accessory

Specifications

Electrical data

Nominal voltage 220|240 V
Voltage type AC/DC
Max. system power 20 W
Max. number of luminaires per miniature circuit breaker B16 (MCB) 10
Max. number of luminaires per miniature circuit breaker C16 (MCB) 10
Power factor 0.9
Surge protection 2 kV
With sensor No
Max. inrush current 50 A
Inrush time 220
Max. number of luminaires per miniature circuit breaker C10 (MCB) 6
Max. number of luminaires per miniature circuit breaker C13 (MCB) 8
Including emergency lighting No
Nominal voltage DC 180|280 V
Frequency 50|60 Hz

Photometrical data

Colour temperature 3000|4000 K
Equivalent to TL 1x35W
Colour consistency (SDCM) 4
Colour rendering index (CRI) > 80

Light technical data

Beam angle 90°
Beam angle 90°
UGR 19

Lifespan

Lifetime (L70) 100000 h
Lifetime (L80) 70000 h
On-/Off-cycles 100000
Lifetime (L90) 50000 h

Capabilities

Dimmability DALI2
With sensor No

Certificates and standards

Protection class according to IEC 61140 I
Impact strength IK03
Glow wire test 650°C
Risk group (EN 62471) RG0
Type of control gear LED operating device current-controlled
With control gear Yes
Driver failure rate (at 5,000 hrs) 1%
Input current 0.86 A
Wirethrough No
Housing colour Aluminium
Cover material Polycarbonate
Finishing Black RAL 9004
Pressure valve No
Coastal proof No
Length 1202 mm
Width 70 mm
Height/depth 85 mm
Application temperature 25°C
Storage environment -25|50°C
Operating temperature -10|45°C
EAN codeEU HS CodePackagingAmountSize (L x W x H)Weight
693720962990694051190CT11.242 x 0.11 x 0.125 m3.15 KG

Accessoires



Accessory Trunking - DALI power supply

Product Code
542098001000
In line power supply


Accessory Lima G2 - I-Connector

Product Code
529098052800
Coupler/connector straight


Accessory Lima G2 - Black L-Connector

Product Code
529098052900
Coupler/connector L-shape


Accessory Lima G2 - Black T-Connector

Product Code
529098053000
Coupler/connector T-shape


Accessory Lima G2 - Black X-Connector

Product Code
529098053100
Coupler/connector X-shape


Accessory Lima G2 - Black Canopy

Product Code
529098053500
Ceiling bracket


Accessory Lima G2 - 12m Slide-in Lens

Product Code
529098053700
Lens
